K02 Docking Station

Four Built-in Backup Batteries, Worry-free Continuous Operation

/gdu-k02-dock-kit-for-s200-series-dual-camera-drone-product/

K02 Docking Station

Four Built-in Backup Batteries, Worry-free Continuous Operation

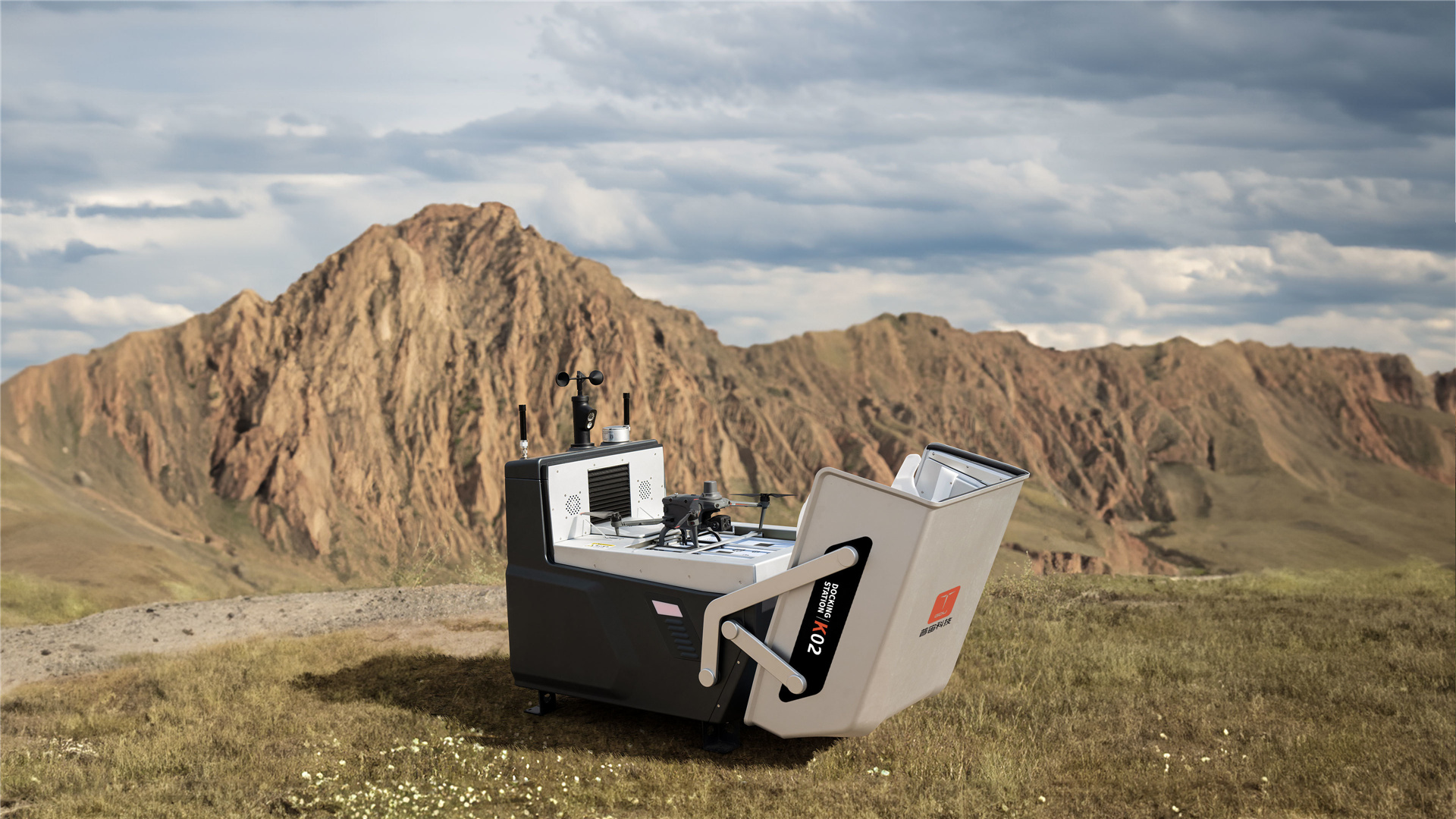

Compact Auto Power-Changing Docking Station

A lightweight, high-performance autonomous docking station designed for the S200 UAV series.

Learn More >>

Compact Auto Power-Changing Docking Station

A lightweight, high-performance autonomous docking station designed for the S200 UAV series.

Learn More >>

Relay Flight for Extended Range and Continuous Connectivity

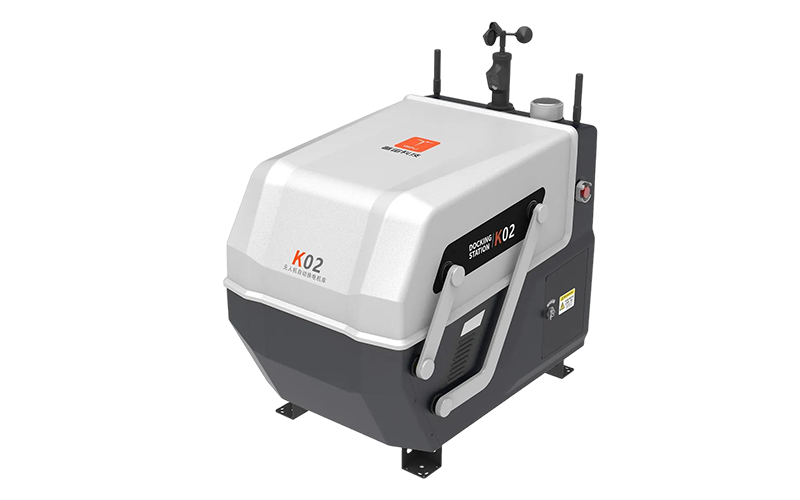

Why Choose K02 ?

Compact and Easy to Deploy

Lightweight design allows for rapid setup and flexible placement, making K02 ideal for mobile and temporary operations.

Auto Power-Changing System

Features automatic battery swapping with a 3-minute work interval, ensuring drones stay mission-ready without manual intervention.

Built-In Backup Batteries

Equipped with four integrated backup batteries for continuous, worry-free operation, supporting uninterrupted 24/7 missions.

All-Weather & Remote Management

With an IP55 protection rating and remote monitoring capability, K02 maintains real-time situational awareness and reliable performance in any environment.

Remote Control, 24/7 Autonomous Operation

Integrates auto takeoff, landing, battery swapping, and weather monitoring, enabling fully unmanned drone missions managed remotely via the UVER platform.

Intelligent Temperature Control for Stable Performance

A built-in climate control system maintains optimal operating conditions in extreme environments, ensuring consistent stability and reliability for every mission.

Fast Battery Change for Continuous Operation

Equipped with a high-speed auto-swapping system supporting up to four batteries, K02 completes autonomous battery replacement in under two minutes, ensuring nonstop drone missions.

Bridge over water from drone perspective

Compact & Lightweight for Flexible Deployment

Weighing just 115 kg and requiring only 1 m² of floor space, K02 is easy to transport and deploy, even in tight spaces such as rooftops or elevators.

Open Platform for Industry Integration

Built with cloud connectivity and open APIs (API/MSDK/PSDK), K02 seamlessly integrates with multiple enterprise platforms, enabling scalable customization and cross-industry applications.

Specs of K02

Item	Specification
Product Name	GDU K02 Compact Auto Power-Changing Docking Station
Compatible UAV	S200 Series UAVs
Main Functions	Automatic battery swapping, auto charging, precision landing, data transmission, remote management
Typical Applications	Smart city management, energy inspection, emergency response, ecological and environmental monitoring
Dimensions (Cover Closed)	≤1030 mm × 710 mm × 860 mm
Dimensions (Cover Opened)	≤1600 mm × 710 mm × 860 mm (excluding hyetometer, weather station, antenna)
Weight	≤115 ±1 kg
Input Power	100–240 VAC, 50/60 Hz
Power Consumption	≤1500 W (max)
Emergency Battery Backup	≥5 hours
Charging Time	≤2 minutes
Work Interval	≤3 minutes
Battery Capacity	4 slots (3 standard battery packs included)
Auto Power-Changing System	Supported
Battery Cabin Charging	Supported
Night Precision Landing	Supported
Leapfrog (Relay) Inspection	Supported
Data Transmission Speed (UAV–Dock)	≤200 Mbps
RTK Base Station	Integrated
Max Inspection Range	8 km
Wind Resistance	Operation: 12 m/s; Precision Landing: 8 m/s
Edge Computing Module	Optional
Mesh Networking Module	Optional
Operating Temperature Range	–20°C to +50°C
Max Operating Altitude	5,000 m
Relative Humidity	≤95%
Antifreezing Function	Supported (heated cabin door)
Ingress Protection	IP55 (Dustproof & Waterproof)
Lightning Protection	Supported
Salt Spray Resistance	Supported
External Environmental Sensors	Temperature, humidity, wind speed, rainfall, light intensity
Internal Cabin Sensors	Temperature, humidity, smoke, vibration, immersion
Camera Monitoring	Dual cameras (interior and exterior) for real-time visual monitoring
Remote Management	Supported via UVER Intelligent Management Platform
Communication	4G (SIM optional)
Data Interface	Ethernet (API supported)
