KEEL Pro 70kg Coaxial Drone: The Ultimate Heavy-Lift Electric UAV

Redefining Industrial Performance with Modular Design, 140kg MTOW, 25-Minute Full-Payload Flight, and Rapid-Deploy Capability

KEEL Pro 70kg Coaxial Drone: The Ultimate Heavy-Lift Electric UAV

Redefining Industrial Performance with Modular Design, 140kg MTOW, 25-Minute Full-Payload Flight, and Rapid-Deploy Capability

Modular High-strength Frame

The frame is made of forged carbon fiber material, with its strength increased by approximately 30%Through high-pressure and high-temperature manufacturing processes, it is lightweightwhile having stronger impact resistance and strength

Learn More >>

Modular High-strength Frame

The frame is made of forged carbon fiber material, with its strength increased by approximately 30%Through high-pressure and high-temperature manufacturing processes, it is lightweightwhile having stronger impact resistance and strength

Learn More >>

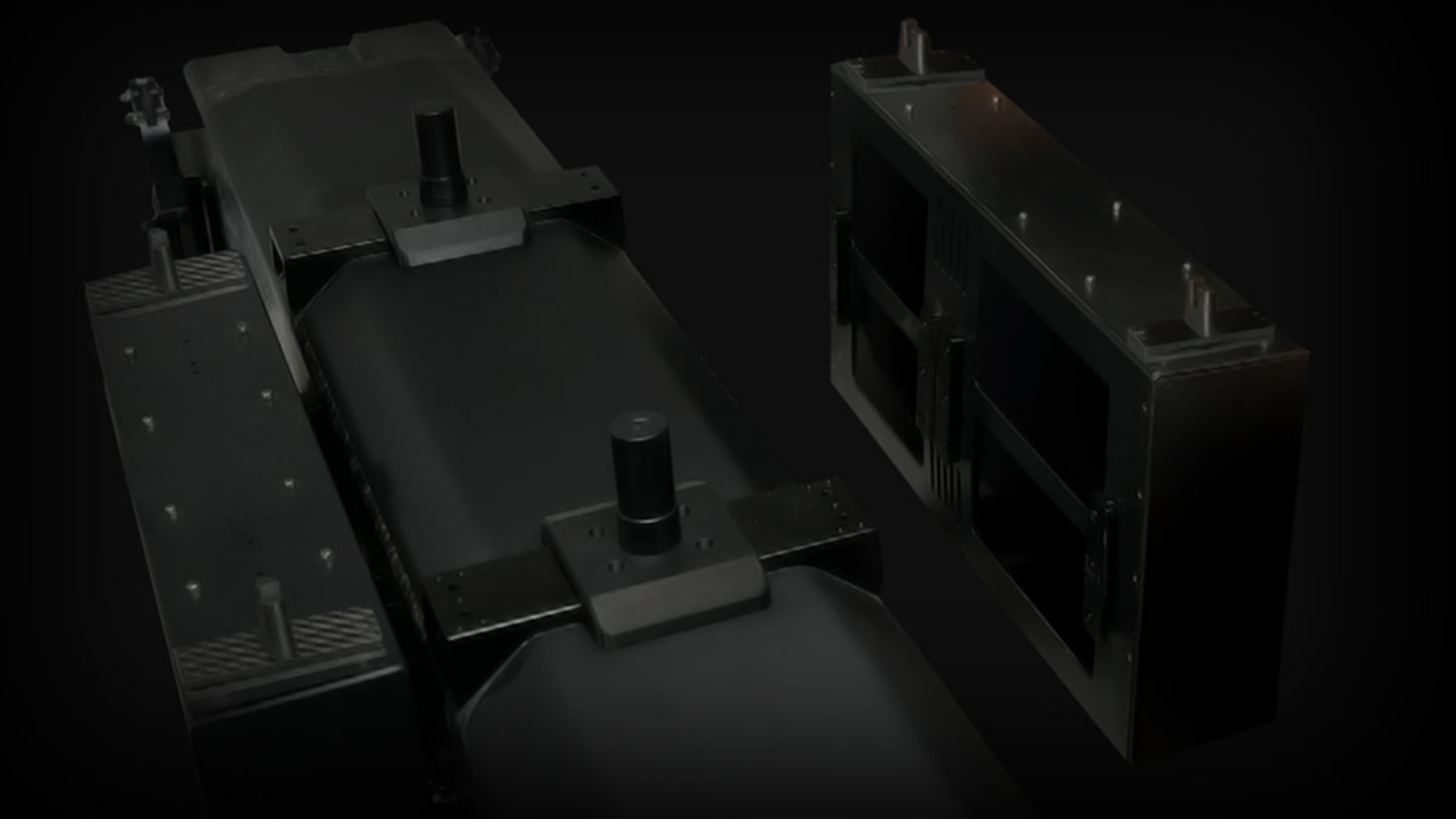

High Energy Rate Dual Battery System

KEEL Pro is equipped with an advanced high-energy-rate battery, offering double endurance and unlimited flightExternal battery, heat dissipation structure, and quick disassembly design

High Energy Rate Dual Battery System

KEEL Pro is equipped with an advanced high-energy-rate battery, offering double endurance and unlimited flightExternal battery, heat dissipation structure, and quick disassembly design

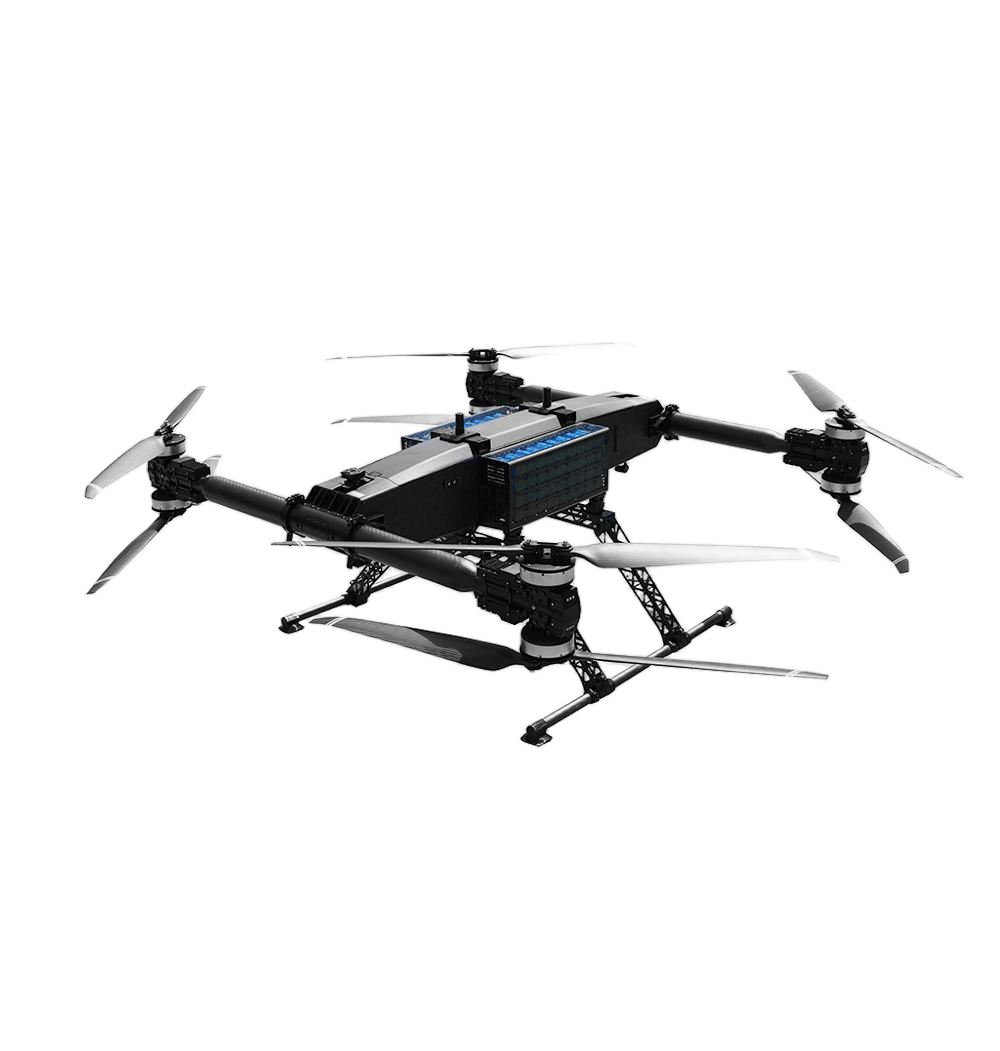

Why Choose KEEL PRO ?

Unmatched Heavy-Lift Performance with Extreme Stability

Engineered to transport payloads up to 70kg, this drone delivers a remarkable 25-minute flight time at full capacity. Its innovative coaxial eight-propeller design and a max takeoff weight of 140kg ensure powerful, stable, and safe flight even in challenging conditions (18m/s wind resistance), redefining reliability for critical missions.

Modular & Rapid-Deployment Design for Ultimate Operational Agility

Featuring a quick-release carbon fiber frame and interchangeable arms, the system can be assembled or reconfigured by 1-2 persons in minutes. This modularity, combined with a compact three-proof aviation case, transforms it from a transport-ready package to an air-ready workhorse with unprecedented speed and flexibility in the field.

Advanced, Customizable Power & Integration Ecosystem

Equipped with a high-energy dual battery system (18S 84Ah) for extended endurance and a self-developed, aviation-grade PDB supporting 36-120V input, it ensures robust and stable power for diverse payloads. Strategic partnerships with leading propulsion manufacturers provide exclusive, calibrated power system adaptations (A12XL, H11M, X11 Max) for tailored performance.

Professionally Engineered for Durability & Mission Scalability

Constructed with forged high-strength carbon fiber (30% stronger) and featuring integrated shock-resistant electronics, the drone is built for durability. Multiple standardized interfaces and support for various transportation modes (hoisting, storage, winch delivery) allow for seamless adaptation and scalability to meet specific industrial, logistics, and special operation requirements.

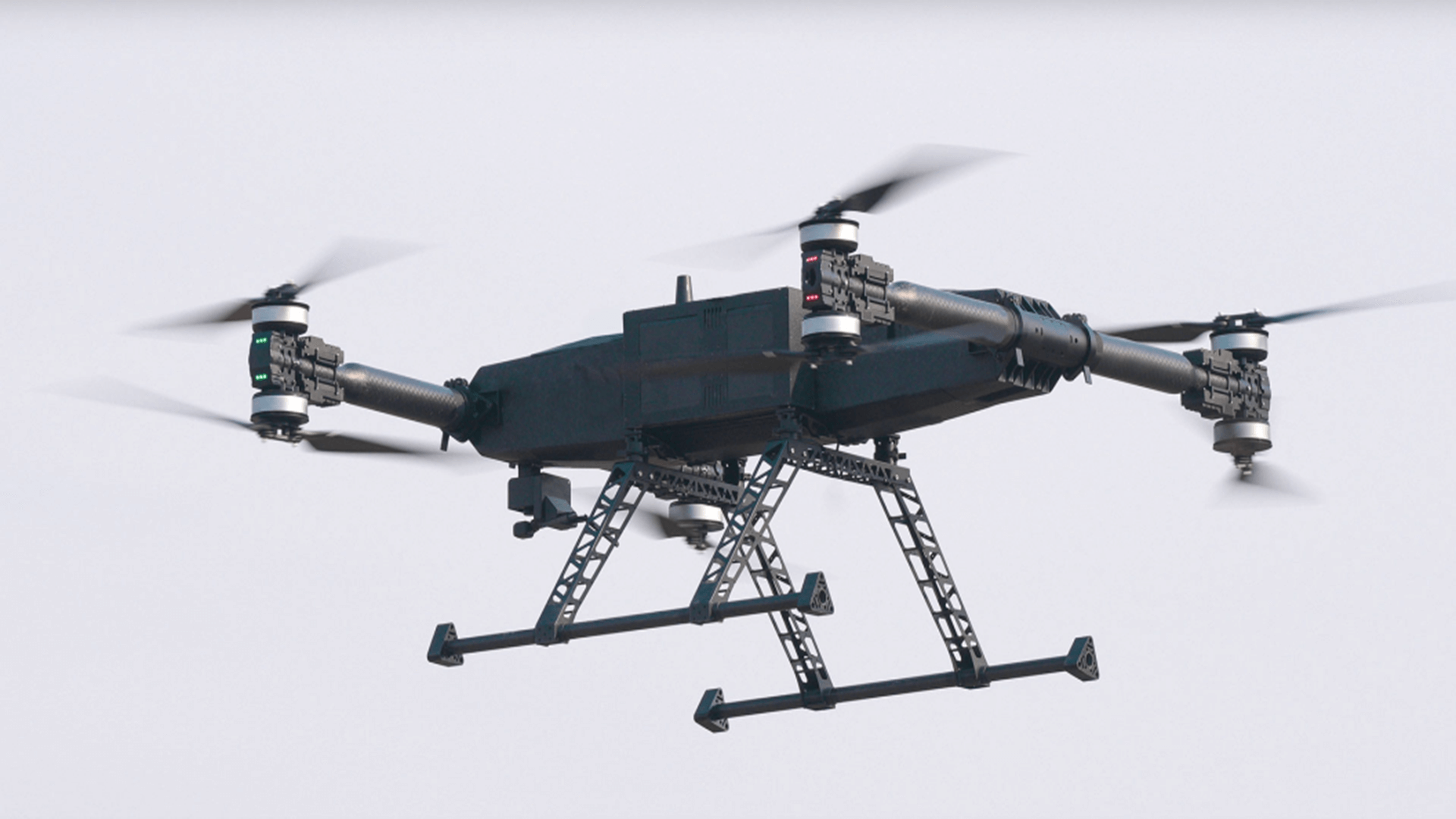

Super-strong Carrying Capacity And stable Flight

After thousands of flight verifications and professional data adjustments, it can still fly safely and stably under extremely heavy loads.

High-Capacity Payload & Stable, Maneuverable Flight

The Keel Pro Drone delivers robust payload capacity and reliable flight performance—validated through thousands of flight calibrations and professional data tuning to ensure safety and stability under heavy loads—while boasting maneuvering specs of 100°/s maximum rotation rate and 25° maximum pitch angle.

Ultimate Modular Mobility: Transport Redefined

Quick-Deploy Frame, Interchangeable Arms & Compact Aviation Case for Unmatched Operational Agility

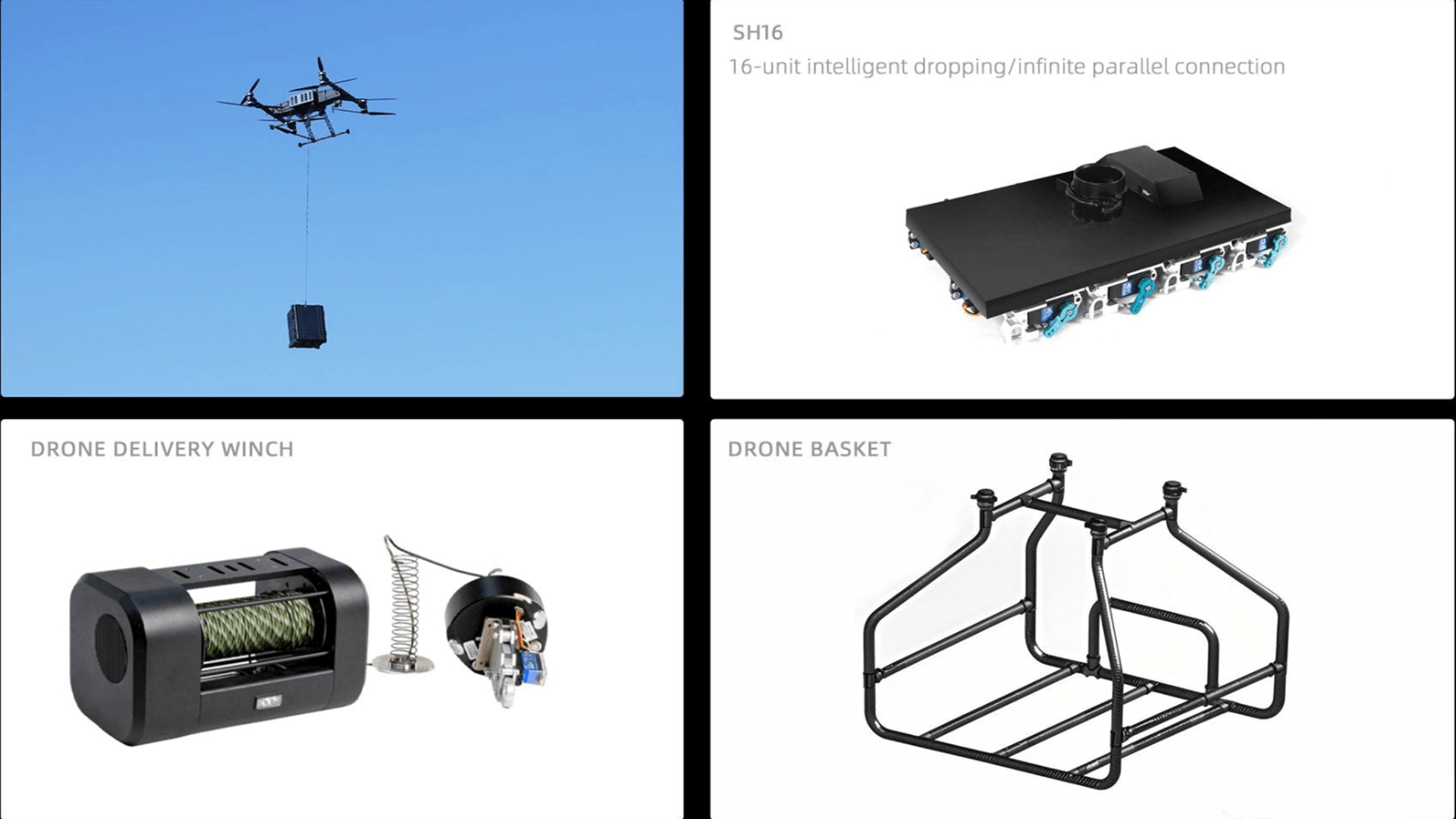

Diversified Transportation Modes

It supports various transportation methods such as hoisting, storage, and throwing, and has Highly modular design and task scalability enable the provision of customized adaptation services based on user needs.

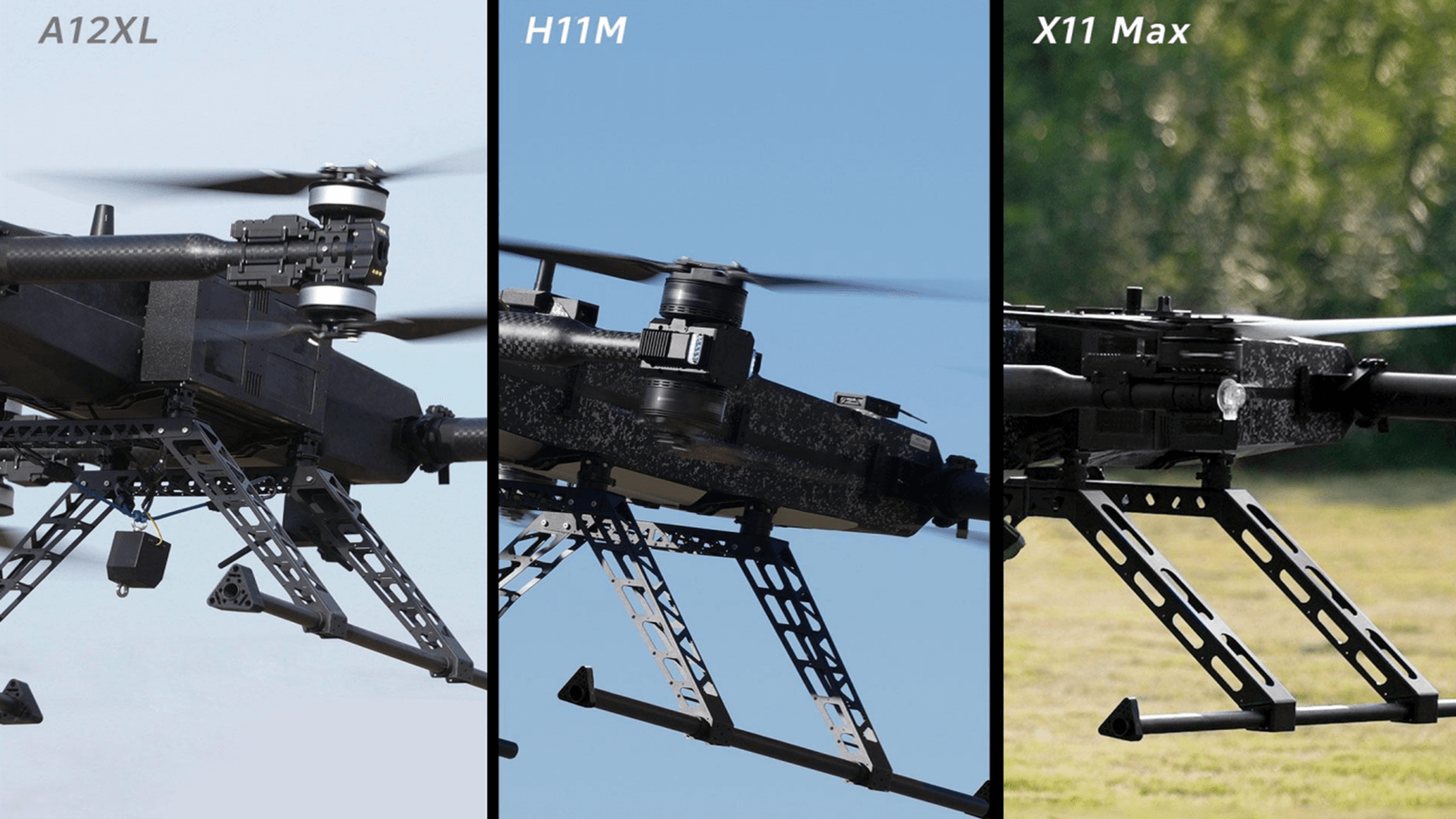

Various Modular Power System Exclusive Adaptation

Our company has forged strategic partnerships with leading propulsion system manufacturers like Hobbywing and T-motor, posessing an exclusively calibrated PiD library, With extensive experience in holistic drone integration solutions,
we deliver richer and more refined customized services for your flight experience.

Specs of KEEL PRO

「KEEL PRO 」30~70 kg Class Drone PNP Parameters
		KEEL PRO X11 Version	KEEL PRO H11 Version	KEEL PRO A12 Version
Flight platform		Quadcopter	Coaxial Quadcopter
Basic parameters	Deployed Dimensions （Arms and landing gears installation, props unfolded）	2670 mm × 2790 mm × 705 mm	2745 mm x 2675 mm x 705 mm	2770 mm x 2680 mm x 705 mm
	Disassembled Dimensions （Arms installation, landing gears & props removed）	1670 mm ×1550 mm × 300 mm	1655 mm x 1585 mm x 300 mm	1675 mm x 1570 mm x 3000 mm
	Packed Dimensions	1730 mm × 690 mm × 590 mm
	Max. Symmetric Wheelbase	2020 mm	2100 mm
	Material	Carbon fiber composite and Aircraft Aluminum
	Deployment Way	Modular quick disassembly, tool-free
	Weight（excl. battery）	26.4 kg	37 kg	35 kg
	*Weight (incl. battery 2 pcs）**	60.6 kg	64.2 kg	70 kg
	Max. Takeoff Weight	91 kg	140 kg
	Max. Loading Capacity	30 kg	70 kg
Flight parameters	The Farthest Flight distance (Flying at a constant speed of 12 m/s when without payload)	/	50.4 km
	Max. Flight Time (Flying at a constant speed of 10 m/s when without payload)	120 min	160 min	180 min
	Endurance *(Cruising at 30 m AGL with constant speed of 10 m/s)**	≤55 min @ 15 kg payload, 40 km ≤40 min @ 30 kg payload, 30 km	≤52 min @ 15 kg payload, 35 km ≤34 min @ 40 kg payload, 24 km ≤20 min @ 70 kg payload, 12 km	≤33 min @ 40 kg payload, 20 km≤18 min @ 70 kg payload, 10 km	≤55 min @ 30 kg payload, 30 km≤35 min @ 50 kg payload, 23 km ≤25 min @ 70 kg payload, 15 km
	Max. Ascent Speed	5 m/s
	Max. Descent Speed	3 m/s
	Max. Horizontal Speed	18 m/s（*No wind, without payload）
	Max. Angular Velocity	100°/s
	Max. Pitch Angle	25°
	Hovering Accuracy *( RTK not used)**	vertical ±0.2 m；horizontal ±0.1 m
	Max. Flight Altitude	Standard propeller ≤3800 m；Plateau propeller ≤7000 m (* Limited by the plateau environment, the maximum payload is reduced to 9 kg at 5000 m)	Standard propeller ≤3800 m；Plateau propeller ≤7000 m (* Limited by the plateau environment, the maximum payload is reduced to 21 kg at 5000 m)
	Max. Wind Speed Resistance	18 m/s (Wind Force 8)
	Working Environment	﹣20 ℃ ～ +55 ℃
Power system
Moter	Model	X11 MAX	H11M	A12XL
Propeller	Size	38175 Carbon fiber folding propeller	4918 Carbon fiber folding propeller
	Quick Disassembly	Not Support (screws need to be removed)
	Quantity	CCW×4 + CW×4
Electric system
Battery	Battery type	Li-ion
	Capacity	Single：18S 75 Ah； Total：18S 150 Ah	Single：14S 75 Ah； Total：14S 150 Ah	Single：18S 75 Ah； Total：18S 150 Ah	Single：7S 42000 mAh； Total：14S 42000 mAh
	Quantity and Configuration	2 Packs(18S2P)	2 Packs(14S2P)	2 Packs(18S2P)
	Weight *（Single pack,Incl. protective case）**	Single: 17.1 kg Total: 34.2 kg	Single: 13.6 kg Total: 27.2 kg	Single: 17.1 kg Total: 34.2 kg
	Size *（Single pack,Incl. protective case）**	480 mm x 160 mm x 215 mm	395 mm x 160 mm x 215 mm	480 mm × 160 mm × 215 mm
	Energy	Single：4851 Wh； Total：9702 Wh	Single：3773 Wh； Total：7546 Wh	Single：4851 Wh； Total：9702 Wh	Single：1037.4 Wh； Total：2,074.8 Wh
	Nominal Voltage *（Single pack）**	64.8 V (3.6 V/cell × 18 cells)	50.4 V (3.6 V/cell × 14 cells)	64.8 V (3.6 V/cell × 18 cells)	62.1 V (3.45 V/cell × 18 cells)
	Fully-charged voltage	76.5 V（4.25 V/cell × 18 cells）	59.5 V（4.25 V/cell × 14 cells）	76.5 V（4.25 V/cell × 18 cells）
	Continuous discharge current and rate *( Single pack)**	225 A（3C-4C）			168 A（2C）
	60s peak discharge rate and current *( Single pack)**	600 A（8C）			336 A（4C）
	Charging current and rate *( Single pack)**	150 A（2C）			84 A（1C）
Charger	Model	B80
	Charging way	Intelligent balance, support 1 batteries charging at the same time
	Max. Charging power	3000 W(@200V AC)，1500 W(@110V AC) , 1400W(@100V AC)
	Parallel charging power/current	1.0~40.0 A(MAX)
	Input voltage	AC 100-240 V
	Output voltage	DC 20~80 V
	Charging duration	About 3 - 4 hours （At a current of 15A, the two batteries are charged simultaneously and the cells are balanced.）	About 1 - 2 hours （At a current of 35A, the two batteries are charged simultaneously and the cells are balanced.）
